Bigrock – Panda Podium

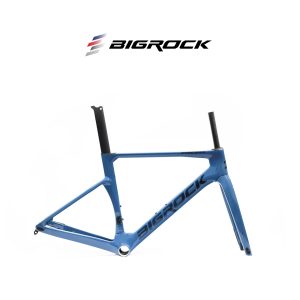

Bigrock Aero Carbon Road Bike Frameset

Tom Zeng — Wed, 31 Jul 2024 03:25:04 +0000

BIGROCK Aero: A reasonable priced aero machine

The Bigrock Aero is Bigrock's latest model. They have use Korean Hyosung carbon fiber materials for the new aero frameset, and select its T800 and
T1000 high-strength and high-modulus materials for production, achieving a perfect combination of lightweight, rigidity and flexibility.

Specifications

Frame Material: T800 + T1000
Thru Axles: Front: 12×100, Rear: 12×142
Headset: 1-1/8″ to 1-1/4″ (Included)
BB: T47 (Threaded) 85.5mm
Front derailleur: Bolted on front hanger
Tire clearance: Max. 700*30C

Sizes: 46, 49, 51, 53, 55, 57, 59
Weight: See Below
Brakes: Disc Brake
Shifting: Di2 / eTap or Mechanical Shifting (Fully internal only)
Contents: Frame, Fork, Seatpost, Headset
Warranty: 3 Years

Aerodynamic Focused

The design of the Bigrock Aero is super aero focused.

The headtube is hourglass shaped, reduced the projection area and still allowing cables to be fully integrated. They have made a smooth transition from the fork to the downtube, which means the airflow to pass through the frame more smoothly and faster.

The seat tube has made to fit the rear wheel better, reducing the intersection of air resistance, thus achieving a more aerodynamic effect.

More Than Aero

Besides the aero tube shape, the down tube of the Bigrock Aero also come with a hollow on the top to shape around a water bottle. On the rear of the frame, the seatstays are moved to a lower position to increase comfort of the bike.

Affordable doesn't mean "Cheap"

While the Bigrock Aero is on the more affordable end of the spectrum, it’s quality and finish are far from “cheap.” The paint work is beautiful, mounting points have been finished with care, and the included accessories put many big brands to shame.

Geometery

Frame Weights

Frame weights are listed without alloy parts/accessories:

Size 46 : 900g ±5%
Size 49 : 920g ±5%
Size 51 : 940g ±5%
Size 53 : 960g ±5%
Size 55 : 980g ±5%
Size 57 : 1000g ±5%
Size 59 : 1020g ±5%

Front Fork: 350g ±10%

Note: The above weights are Bigrock’s official numbers without alloy parts. The T47 insert is bonded into the frame so it’s impossible to check these figures, but in our experience the alloy parts are around 80g.

Gallery

Integrated Handlebar

When you order a Bigrock frameset you are also able to add a Bigrock integrated handlebar to your order. The bar has great ergonomics and weighs around 320-360g depending on size.

Angle: -8°
Reach: 75mm
Drop: 127mm
Flare: 25mm

Bigrock Sohtea TEAM EDITION Carbon Road Bike Frameset

Joe Whittingham — Tue, 20 Feb 2024 06:10:44 +0000

BIGROCK Sohtea: A no-nonsense modern classic

The Bigrock Sohtea is a modern take on a classic concept, wrapped in a super light package. Disc brakes and fully internal cable routing make it ready for today's hydraulic electronic groupsets, while a traditional double-triangle frame design with a shorter seat tube is a throwback to the compact road bike design of yesteryear. The advantage of this design is a better stiffness to weight ratio of the frame while offering more compliance to the saddle due to the increased length of exposed seat post.

Specifications

Frame Material: Mitsubishi T1100 + T800
Thru Axles: Front: 12×100, Rear: 12×142
Headset: 1-1/8″ to 1-1/4″ (Included)
BB: T47 (Threaded) 85.5mm
Front derailleur: Bolted on front hanger
Tire clearance: Max. 700*30C

Sizes: XXS (45), XS (49), S (52), M (54), L (56)
Weight: See Below
Brakes: Disc Brake
Shifting: Di2 / eTap or Mechanical Shifting (Fully internal only)
Contents: Frame, Fork, Seatpost, Headset
Warranty: 3 Years

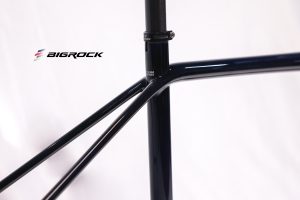

A simple design, well executed

Sometimes the bike industry gets ahead of itself, designing bikes more and more complicated in the name of marginal gains.

The Bigrock Sohtea takes things back to basics. Two triangles, round tubes, nice and light.

The result? A suprisingly stiff bike for it’s weight that has balanced handling and plenty of compliance in the saddle.

More Seatpost, More Comfort

On most road bikes today, shorter riders are left with tiny amounts of seat post sticking out the frame. This creates a harsh, uncomfortable ride with the short length of seat post unable to absorb the bumps. By shortening the seat tube, the Sohtea leaves more exposed seat post providing more comfort to the rider. Once you get used to the “strange” appearance, it starts to make a lot of sense…

Team Edition

While the Bigrock Sohtea is on the more affordable end of the spectrum, it’s quality and finish are far from “cheap.” The paint work is beautiful, mounting points have been finished with care, and the included accessories put many big brands to shame.

Geometery

Frame Size:	XXS 45	XS 49	S 52	M 54	L 56	XL 58
Seat Tube (ST)	400	431	462	481	504	532
Top Tube (TT)	490	508	531	540	562	577
Head Tube (HT)	102	109	120	137	157	184
Seat Angle (STA)	76	75.5	74	74	73.5	73.5
Head Angle (HTA)	70.5	71.75	72.5	73	73.5	73.5
BB Drop (BD)	74	74	74	72	72	72
Fork Length (FL)	369	369	369	369	369	369
Front Rake (FR)	47	47	47	44	44	44
Front Center (FC)	571	574	577	579	591	605.8
Rear Center (RC)	410	410	410	410	410	410
Wheel Base (WB)	970	973	975	978	990	1005
Stack	502	513	526	543	564	590
Reach	365	375	380	384	395	402
Recommended Rider Height	144-158	155-168	164-174	172-180	178-184	182-190

Frame Weights

Frame weights are listed without alloy parts/accessories:

Size XXS (45) : 603g ±5%
Size XS (49) : 615g ±5%
Size S (52) : 626g ±5%
Size M (54) : 638g ±5%
Size L (56) : 675g ±5%

Front fork: 285g ±10%

Note: These are the official weights provided by Bigrock. They claim they exclude alloy parts. We suspect this also means they exclude the T47 thread insert. Therefore, we expect real-world frameweights to be about 60g more than these official weights. (Including T47, front and rear mech hangers.)

Gallery

Integrated Handlebar

When you order a Bigrock frameset you are also able to add a Bigrock integrated handlebar to your order. The bar has great ergonomics and weighs around 320-360g depending on size.

Angle: -8°
Reach: 75mm
Drop: 127mm
Flare: 25mm

BiGROCK TOP Pro Light Weight 117g Carbon Saddle

Tom Zeng — Wed, 11 Oct 2023 03:49:00 +0000

BiGROCK TOP Pro Light Weight 117g Carbon Saddle

The BIGROCK TOP Pro saddle combines speed and comfort with its ultra-light 117g design, making it ideal for both sprints and long-distance rides.

Constructed with high-strength T800 carbon fibre and reinforced with Kevlar at stress points, it ensures stability and durability.

The high-density EVA foam provides soft yet firm support, while vacuum suction technology allows the saddle to mould perfectly to your body, reducing vibrations.

Its sleek, modern design complements high-end road bikes and offers wide compatibility, making installation straightforward and upgrading your ride effortless.

Features

Color: Black/Carbon

Weight: 117g (±5g)

Application: Versatile road cycling saddle for both sprints and long-distance rides

Saddle Surface Specifications: Available in two sizes, 245mm × 140mm or 245mm × 150mm

Saddle Bow Specifications: Universal compatible 7mm × 9mm carbon fibre rail

Main Material: High-strength T800 carbon fibre reinforced with bulletproof Kevlar fibre

Support Structure: Highly resilient EVA cushioning material for comfort and vibration reduction

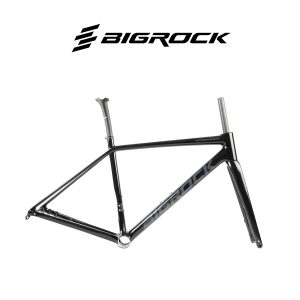

Bigrock Sohtea Superlight Carbon Road Bike Frameset

Tom Zeng — Wed, 11 Oct 2023 02:56:11 +0000

BIGROCK Sohtea: A no-nonsense modern classic

The Bigrock Sohtea is a modern take on a classic concept, wrapped in a super light package. Disc brakes and fully internal cable routing make it ready for today's hydraulic electronic groupsets, while a traditional double-triangle frame design with a shorter seat tube is a throwback to the compact road bike design of yesteryear. The advantage of this design is a better stiffness to wait ratio of the frame while offering more compliance to the saddle due to the increased length of exposed seat post.

Specifications

Frame Material: T800
Thru Axles: Front: 12×100, Rear: 12×142
Headset: 1-1/8″ to 1-1/4″ (Included)
BB: T47 (Threaded) 85.5mm
Front derailleur: Bolted on front hanger
Tire clearance: Max. 700*30C

Sizes: XXS (45), XS (49), S (52), M (54), L (56)
Weight: See Below
Brakes: Disc Brake
Shifting: Di2 / eTap or Mechanical Shifting (Fully internal only)
Contents: Frame, Fork, Seatpost, Headset
Warranty: 3 Years

A simple design, well executed

Sometimes the bike industry gets ahead of itself, designing bikes more and more complicated in the name of marginal gains.

The Bigrock Sohtea takes things back to basics. Two triangles, round tubes, nice and light.

The result? A suprisingly stiff bike for it’s weight that has balanced handling and plenty of compliance in the saddle.

More Seatpost, More Comfort

Affordable doesn't mean "Cheap"

Geometery

Frame Size:	XXS 45	XS 49	S 52	M 54	L 56	XL 58
Seat Tube (ST)	400	431	462	481	504	532
Top Tube (TT)	490	508	531	540	562	577
Head Tube (HT)	102	109	120	137	157	184
Seat Angle (STA)	76	75.5	74	74	73.5	73.5
Head Angle (HTA)	70.5	71.75	72.5	73	73.5	73.5
BB Drop (BD)	74	74	74	72	72	72
Fork Length (FL)	369	369	369	369	369	369
Front Rake (FR)	47	47	47	44	44	44
Front Center (FC)	571	574	577	579	591	605.8
Rear Center (RC)	410	410	410	410	410	410
Wheel Base (WB)	970	973	975	978	990	1005
Stack	502	513	526	543	564	590
Reach	365	375	380	384	395	402
Recommended Rider Height	144-158	155-168	164-174	172-180	178-184	182-190

Frame Weights

Frame weights are listed without alloy parts/accessories:

Size XXS (45) : 730g ±5%
Size XS (49) : 750g ±5%
Size S (52) : 780g ±5%
Size M (54) : 810g ±5%
Size L (56) : 830g ±5%
Size XL (56) : 860g ±5%

Front fork: 340g ±10%

Gallery

Integrated Handlebar

When you order a Bigrock frameset you are also able to add a Bigrock integrated handlebar to your order. The bar has great ergonomics and weighs around 320-360g depending on size.

Angle: -8°
Reach: 75mm
Drop: 127mm
Flare: 25mm
